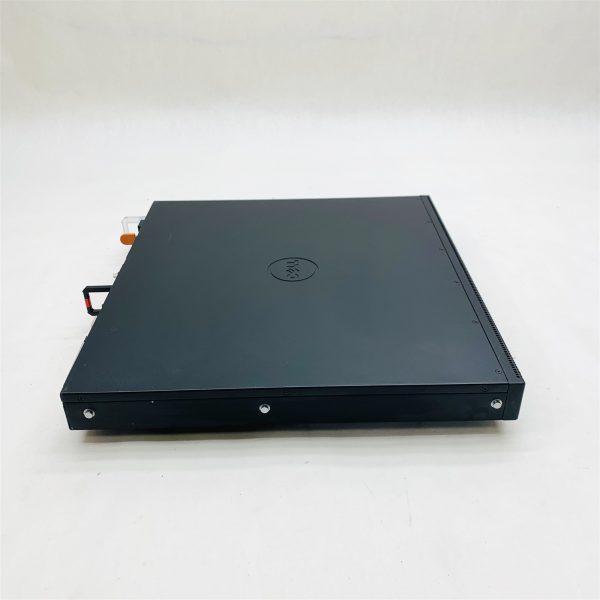

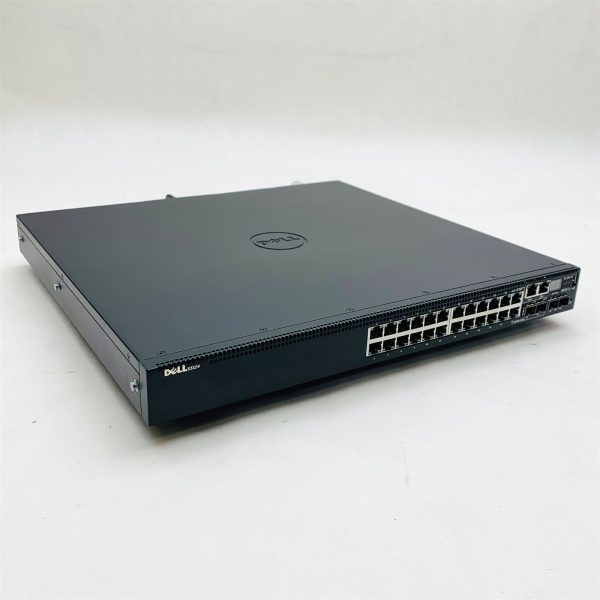

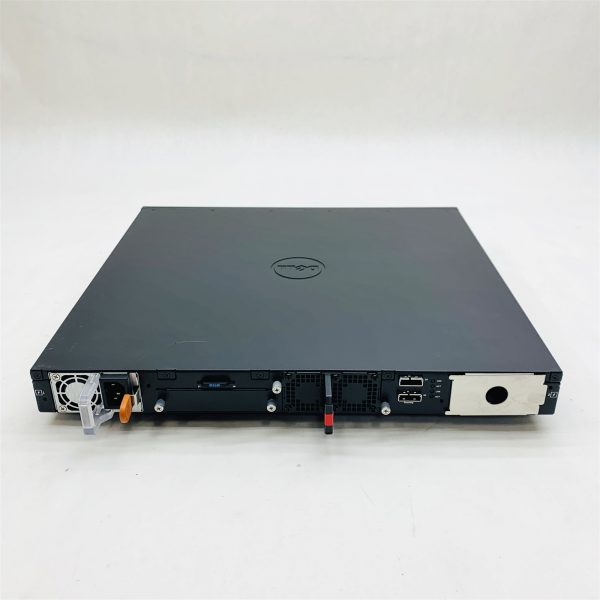

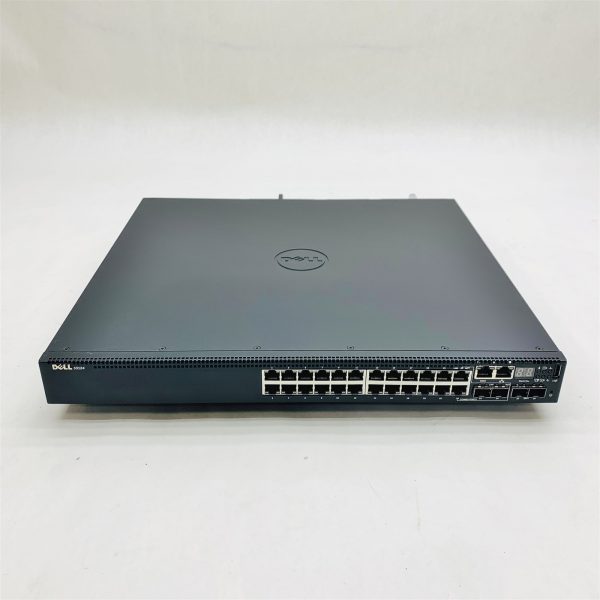

Dell PowerSwitch S3124 24-Port 4-SFP Managed Gigabit Ethernet Network Switch

TESTING & COSMETIC NOTES:This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKINGThe unit has been reset to the factory default settings. See console log below. COMPONENTS INCLUDED IN THIS AUCTION:• (1) – DELL POWERSWITCH S3124 24-PORT 4-SFP MANAGED GIGABIT ETHERNET NETWORK SWITCH• (1) – POWER SUPPLY• (1) – POWER CORD REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee. ADDITIONAL INFORMATION:U-Boot 2012.10(Dell) (Nov 09 2015 – 00:29:48) Boot strap=00000a54 board_type=00000002Uboot is running in (Mt Augusta)DRAM: 2 GiBWARNING: Caches not enabledI2C :Readycpld: val=00NAND: cs 0 dev_id word 0 2c380026Micron MT29F8G08ABABA, blocks per lun: 800 lun count: 1dumping inand[cs=0] addr[DFE80008] ONFI info: device 1024MB, page 4096B, oobsize 224B, block 512KB, col-addr 2, row-addr 3, 8-bitFound strap type 0x2 strap page 0x2REG_ACC_CONTROL c1040010 spare_area_bytes 10 ecc_level 4 eccbytes 7 steps 8REG_CONFIG 48252300512 KiB blocks, 4 KiB pages, 16B OOB, 8-bitNAND: user oob per page: 3757153230 bytes (8 steps)NAND: chipsize 1024 MiBIn: serialOut: serialErr: serialarm_clk=1000MHz, axi_clk=499MHz, apb_clk=124MHz, arm_periph_clk=500MHzNet: Registering ethet0: phyaddr(0x1) id2(0xf) bcmiproc_eth-0Hit Esc key to interrupt autoboot: 0Booting PRIMARY configuration… boot device : flashfile name : systema (FTOS system://A Partition)Erasing Nand…Erasing at 0x100000 — 100% complete.Writing to Nand… doneBooting FTOS imageoff 0x2700000 addr 0x6fffff10 siz c5a5d0## Booting kernel from Legacy Image at 70000000 … Image Name: netbsd Created: 1970-01-01 0:00:00 UTC Image Type: ARM NetBSD Kernel Image (gzip compressed) Data Size: 12952720 Bytes Load Address: 00100000 Entry Point: 00100000 Verifying Checksum … OK Uncompressing Kernel Image … OK## Transferring control to NetBSD stage-2 loader (at address 00100000) …@ABC1234DEFG1HIJLYZ!uboot arg = 0xdfe7ffe0, 0, 0xdff8d36c, 0xdff8d36c NetBSD/evbarm (bcm53xx) booting …initarm: Configuring system, CLIDR=1110000003 CTR=0x83338003 PMUSERSR=0Loaded initial symtab at 0x815e8db0, strtab at 0x816cb378, # entries 57858pmap_postinit: Allocated 35 static L1 descriptor tablesCopyright (c) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 The NetBSD Foundation, Inc. All rights reserved.Copyright (c) 1982, 1986, 1989, 1991, 1993 The Regents of the University of California. All rights reserved. Dell Networking OS Release 9.10(0.0) NetBSD 5.1_STABLE (S3100) #0: Sun Apr 10 07:52:32 PDT 2016total memory = 16383 PBavail memory = 1937 MBmainbus0 (root)cpu0 at mainbus0 core 0: 1 GHz Cortex-A9 r4p0 (Cortex V7A core)cpu0: DC enabled IC enabled WB disabled EABT branch prediction enabledcpu0: 32KB/32B 4-way L1 Instruction cachecpu0: 32KB/32B 4-way write-back-locking-C L1 Data cachecpu0: 512KB/32B 16-way write-back-locking-D L2 Unified cacheiprockbde0 at mainbus0 IPROC dev_rev_id=0x1b342,Dev=b342,rev=0001 Created a iProc BCM switch device BA=0x48000000 IRQ=194 device=0xb342BCM Bus Space mem Handle = 0x8363b3dc_dma_pbase = 0x68000000kva=0xcf000000/0x2000000,map=0xc24d0320,nsegs=1,pa=68000000/2000000DMA VBASE:0xcf000000 DMA PBASE:68000000armperiph0 at mainbus0arml2cc0 at armperiph0: ARM PL310 r3p2 L2 Cache Controller (disabled)arml2cc0: cache enabledarmgic0 at armperiph0: Generic Interrupt Controller, 256 sources (245 valid)armgic0: 32 Priorities, 224 SPIs, 5 PPIs, 16 SGIsa9tmr0 at armperiph0: A9 Global 64-bit Timer (500 MHz)a9tmr0: interrupting on irq 27bcmcca0 at mainbus0: BCM56340 (Rev A0)bcmcca0: interrupting at irq 123com0 at bcmcca0 channel 0: ns16550a, working fifocom0: consolecom1 at bcmcca0 channel 1: ns16550a, working fifobcmgpio0 at bcmcca0 gpio addr:0xff000060gpio0 at bcmgpio0: 32 pinsbcmccb0 at mainbus0bcmmdio0 at bcmccb0: MDIO bus @ 2 MHzbcmrng0 at bcmccb0: Random Number Generator (512 bit FIFO)bcmi2c0 at bcmccb0 port 1iic0 at bcmi2c0: I2C busi2cctl0 at iic0tmp75x0 at iic0 addr 0x49tmp75x1 at iic0 addr 0x4astmrtc0 at iic0 addr 0x68cpldx0 at iic0 addr 0x28 CPLD attched at 28sfpx0 at iic0 addr 0x50 : SFP eeprom at addr 0x50sfpx1 at iic0 addr 0x51 : SFP eeprom at addr 0x51I2C SMBus initialization donebcmi2c1 at bcmccb0 port 2iic1 at bcmi2c1: I2C busi2cctl1 at iic1s2eeprom0 at iic1 addr 0x50 : AT24Cxx compatible EEPROMs2eeprom1 at iic1 addr 0x51 : AT24Cxx compatible EEPROMs2eeprom2 at iic1 addr 0x52 : AT24Cxx compatible EEPROMs2eeprom3 at iic1 addr 0x52 : AT24Cxx compatible EEPROMpsufanctlx0 at iic1 addr 0x58 – PSU FAN controller (MB) 0psufanctlx1 at iic1 addr 0x58 – PSU FAN controller (MB) 1max6639x0 at iic1 addr 0x2c Fan controller attached at 0x2cWRITE SUCCESS[r-0x4]:0x10 – 0curmon0 at iic1 addr 0x40 Current moniter attached at 0x40I2C SMBus initialization donebcmeth0 at bcmccb0 port 0: Gigabit Ethernet Controllerbcmeth0: interrupting on irq 234bcmeth0: Ethernet address 00:01:02:03:04:05brgphy0 at bcmeth0 phy 1: BCM54616S 1000BASE-T media interface, rev. 2brgphy0: 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-FDX, autobcmeth1 at bcmccb0 port 1: Gigabit Ethernet Controllerbcmeth1: interrupting on irq 235bcmeth1: Ethernet address 00:01:02:03:04:07OUI 0x001be9 model 0x0011 rev 2 at bcmeth1 phy 1 not configuredbcmnand0 at bcmccb0: nand revision 0x80000601onfinand0 at bcmnand0: ONFI NAND Flashonfinand_read_parameter_page:565 crc 0x510f integrity 0X510Fonfinand0: vendor: MICRON, model: MT29F8G08ABABAWPonfinand0: page size: 4096 bytes, spare size: 224 bytes, block size: 524288 bytesonfinand0: LUN size: 2048 blocks, LUNs: 1, total storage size: 1024 MB1G nand is presentonfinand0: column cycles: 2, row cycles: 3, width: x8Found BBT table for chipflash0 at onfinand0: NAND flash partition size 1024 KB, offset 0, read onlyflash0: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash1 at onfinand0: NAND flash partition size 512 KB, offset 0x100000flash1: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash2 at onfinand0: NAND flash partition size 256 KB, offset 0x180000, read onlyflash2: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash3 at onfinand0: NAND flash partition size 256 KB, offset 0x1c0000, read onlyflash3: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash4 at onfinand0: NAND flash partition size 512 KB, offset 0x200000, read onlyflash4: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash7 at onfinand0: NAND flash partition size 28 MB, offset 0x400000, read only flash7: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash8 at onfinand0: NAND flash partition size 1024 KB, offset 0x2000000flash8: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash9 at onfinand0: NAND flash partition size 1024 KB, offset 0x2100000flash9: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash10 at onfinand0: NAND flash partition size 1024 KB, offset 0x2200000flash10: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash11 at onfinand0: NAND flash partition size 2048 KB, offset 0x2300000flash11: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash12 at onfinand0: NAND flash partition size 2048 KB, offset 0x2500000, readonlyflash12: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash13 at onfinand0: NAND flash partition size 128 MB, offset 0x2700000flash13: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash14 at onfinand0: NAND flash partition size 128 MB, offset 0xa700000flash14: erase size 512 KB, page size 4096 bytes, write size 4096 bytesflash15 at onfinand0: NAND flash partition size 728 MB, offset 0x12700000flash15: erase size 512 KB, page size 4096 bytes, write size 4096 bytesld0 at flash15 child attachedbcmusb0 at bcmccb0ohci0 at bcmusb0: OHCI USB controllerohci0: OHCI version 1.0, legacy supportusb0 at ohci0: USB revision 1.0ehci0 at bcmusb0: ECHI USB controllerehci0: companion controller, 2 ports each: ohci0usb1 at ehci0: USB revision 2.0bcmusb0: interrupting on irq 117ld0: 728 MB, 740 cyl, 32 head, 63 sec, 512 bytes/sect x 1492991 sectorsld0: sector size : 512, number of sectors : 1492991uhub0 at usb0: Broadcom OHCIroot hub, class 9/0, rev 1.00/1.00, addr 1uhub1 at usb1: Broadcom EHCI root hub, class 9/0, rev 2.00/1.00, addr 1netdisk:netdisk attach invoked..Too many symbols for tree, skipping 25091 symbolsf10mc pseudo-deviceplatform pseudo-deviceWRITE SUCCESS[r-0x4]:0x10 – 0x10max6639: smbus timeout enabledcrshntfy pseudo-devicebshell pseudo-devices3100_diag as pseudo-device getting attachedBroadcom Device Enumerator (nbsd_ubde) 0: Interrupt mode CMICmbcnp pseudo-devicebcmw pseudo-devicebcmwstk pseudo-devicebcmws pseudo-devicef10logger as pseudo-device getting attachedbfd pseudo-deviceboot device: root on md0a dumps on netdisk0aWARNING: clock gained 3243 daysWARNING: CHECK AND RESET THE DATE!route: writing to routing socket: File existsadd host 0.0.0.0: gateway 127.0.0.1: File exists0x815cff34 0x815cff34 Size of ReleaseImage is 48182049 Bytes RELEASE IMAGE HEADER DATA :————————–Release Image SW Image Count : 4Release Image Major-Version : 9Release Image Minor Version : 10Release Image Maint Version : 0Release Image Patch-Version : 0Release Image Header Size : 140Release Image Data Size : 48181909Release Image Platform Type : 27Release Image Product Name : FTOS-S3100Release Image Checksum Value : 0x2249a978Release Image Header Checksum: 0xa94a0168Release Image Create Year : 2016Release Image Create Month : 4Release Image Create Date : 10Release Image Create Hour : 7Release Image Create Minute : 54Release Image Create Second : 7 SOFTWARE IMAGE HEADER DATA :—————————-Software Image[1] Major Version : 9Software Image[1] Minor Version : 10Software Image[1] Maint Version : 0Software Image[1] Patch Version : 0Software Image[1] Image type : 2Software Image[1] Header Size : 100Software Image[1] Img Data Size : 12952800Software Image[1] Img Orig Size : 12952800Software Image[1] Family Code : cpSoftware Image[1] Img file Name : CPRPLP-RPM-AP-9.10.0.0.binSoftware Image[1] Hdr Checksum : 0xa93a510Software Image[1] Data Checksum : 0x8065145d SOFTWARE IMAGE HEADER DATA :—————————-Software Image[2] Major Version : 9Software Image[2] Minor Version : 10Software Image[2] Maint Version : 0Software Image[2] Patch Version : 0Software Image[2] Image type : 2Software Image[2] Header Size : 100Software Image[2] Img Data Size : 25011656Software Image[2] Img Orig Size : 66611216Software Image[2] Family Code : nbsdpcprplpSoftware Image[2] Img file Name : NBSDPCPRPLP-RPM-AP-9.10.0.0.binSoftware Image[2] Hdr Checksum : 0x9bdc5188Software Image[2] Data Checksum : 0xc20af5e6 SOFTWARE IMAGE HEADER DATA :—————————-Software Image[3] Major Version : 9Software Image[3] Minor Version : 10Software Image[3] Maint Version : 0Software Image[3] Patch Version : 0Software Image[3] Image type : 2Software Image[3] Header Size : 100Software Image[3] Img Data Size : 9587357Software Image[3] Img Orig Size : 24350736Software Image[3] Family Code : nbsdlibcpSoftware Image[3] Img file Name : NBSDLIBCP-RPM-AP-9.10.0.0.binSoftware Image[3] Hdr Checksum : 0x6eae1f58Software Image[3] Data Checksum : 0x9e2eda42 SOFTWARE IMAGE HEADER DATA :—————————-Software Image[4] Major Version : 5Software Image[4] Minor Version : 2Software Image[4] Maint Version : 1Software Image[4] Patch Version : 4Software Image[4] Image type : 1Software Image[4] Header Size : 100Software Image[4] Img Data Size : 629696Software Image[4] Img Orig Size : 629696Software Image[4] Family Code : cpSoftware Image[4] Img file Name : CPRPLP-RPM-BT-5.2.1.4.binSoftware Image[4] Hdr Checksum : 0x17bd35edSoftware Image[4] Data Checksum : 0x155c9fecPartitioning 1G flash parition flash15…Pass!Starting Dell Networking OS Feb 25 15:47:27: %S3124:1 %POLLMGR-2-USER_FLASH_STATE: USB flash disk missing in ‘usbflash:’ ……Feb 25 15:47:30: %STKUNIT1-M:CP %RAM-6-ELECTION_ROLE: Stack-unit 1 is transitioning to Management Stack-unit.….Feb 25 15:47:42: %STKUNIT1-M:CP %CRYPTO-5-FIPS_SELF_TEST_PASSED: [sysd] FIPS crypto module self-test passedFeb 25 15:47:42: %STKUNIT1-M:CP %CHMGR-5-STACKUNIT_DETECTED: stack-unit 1 presentFeb 25 15:47:45: %STKUNIT1-M:CP %CHMGR-5-LPM_CONFIG: Applying the default IPv6 LPM partition configFeb 25 15:47:47: %STKUNIT1-M:CP %CHMGR-5-CHECKIN: Checkin from stack-unit 1 (type S3124, 30 ports).Feb 25 15:47:50: %STKUNIT1-M:CP %CHMGR-5-STACKUNIT_UP: stack-unit 1 is up f10coreSSNKernelCorePresent: 1318Feb 25 15:48:19: %S3124:1 %CHMGR-5-FAN_SPEED_CHANGE: Fan speed changed to 55 % of the full speedFeb 25 15:48:20: %STKUNIT1-M:CP %RAM-5-STACKUNIT_STATE: Stack-unit 1 is in Active State.Feb 25 15:48:20: %STKUNIT1-M:CP %CHMGR-2-SYSTEM_READY: System readyFeb 25 15:48:32: %STKUNIT1-M:CP %CHMGR-5-PEM_INSERTED: Power entry module 1 of unit 1 is insertedFeb 25 15:48:32: %STKUNIT1-M:CP %CHMGR-0-PS_UP: Power supply 1 in unit 1 is upFeb 25 15:48:32: %STKUNIT1-M:CP %CHMGR-4-TEMP_STATUS_CHANGE: Unit 1 temperature state changed to 0 (Current temperature 30C).Feb 25 15:48:32: %STKUNIT1-M:CP %CHMGR-5-FANTRAY_INSERTED: Fan tray 1 of Unit 1is insertedFeb 25 15:48:32: %STKUNIT1-M:CP %CHMGR-5-PSU_FAN_STATUS: Fan 1 in PSU 1 of Unit1 is upFeb 25 15:48:36: %STKUNIT1-M:CP %SYS-5-CONFIG_LOAD: Loading configuration fileFeb 25 15:48:48: %STKUNIT1-M:CP %SUPPORT_ASSIST-3-SUPASSIST_PKG_INSTALLATION_ERROR: SupportAssist package installation encountered error : No Smartscripts Package found. , exist status: 1 Feb 25 15:48:50: %STKUNIT1-M:CP %SUPPORT_ASSIST-6-SUPASSIST_PKG_UNINSTALLED: SupportAssist package uninstalledFeb 25 15:48:50: %STKUNIT1-M:CP %BMP-5-BMP_POST_SCRIPT_NOT_PRESENT: The Post-Config Script is not present.Feb 25 15:48:51: %STKUNIT1-M:CP %SEC-5-LOGIN_SUCCESS: Login successful on consoleDell>Dell>en The SupportAssist EULA acceptance option has not been selected. SupportAssist can be enabled once the SupportAssist EULA has been accepted. Use the: ‘support-assist activate’ command to accept EULA and enable SupportAssist. Dell#Feb 25 15:48:55: %STKUNIT1-M:CP %SEC-4-ENABLE_PASSW_NOT_CONFIGURED: Enablepassword is required for authentication but not configured (by default from console)Feb 25 15:48:55: %STKUNIT1-M:CP %SEC-5-AUTHENTICATION_ENABLE_SUCCESS: Enable authentication success on console Dell#show versionDell Real Time Operating System SoftwareDell Operating System Version: 2.0Dell Application Software Version: 9.10(0.0)Copyright (c) 1999-2016 by Dell Inc. All Rights Reserved.Build Time: Sun Apr 10 06:42:55 2016Build Path: /sites/eqx/work/swbuild01_1/build16/E9-10-0/SW/SRCDell Networking OS uptime is 2 minute(s) System image file is “system://A” System Type: S3124Control Processor: Broadcom 56340 (ver A0) with 2 Gbytes (2147483648 bytes) of memory, core(s) 1. 1G bytes of boot flash memory. 1 28-port GE/TE (S3100) 24 GigabitEthernet/IEEE 802.3 interface(s) 2 Ten GigabitEthernet/IEEE 802.3 interface(s)Dell#
